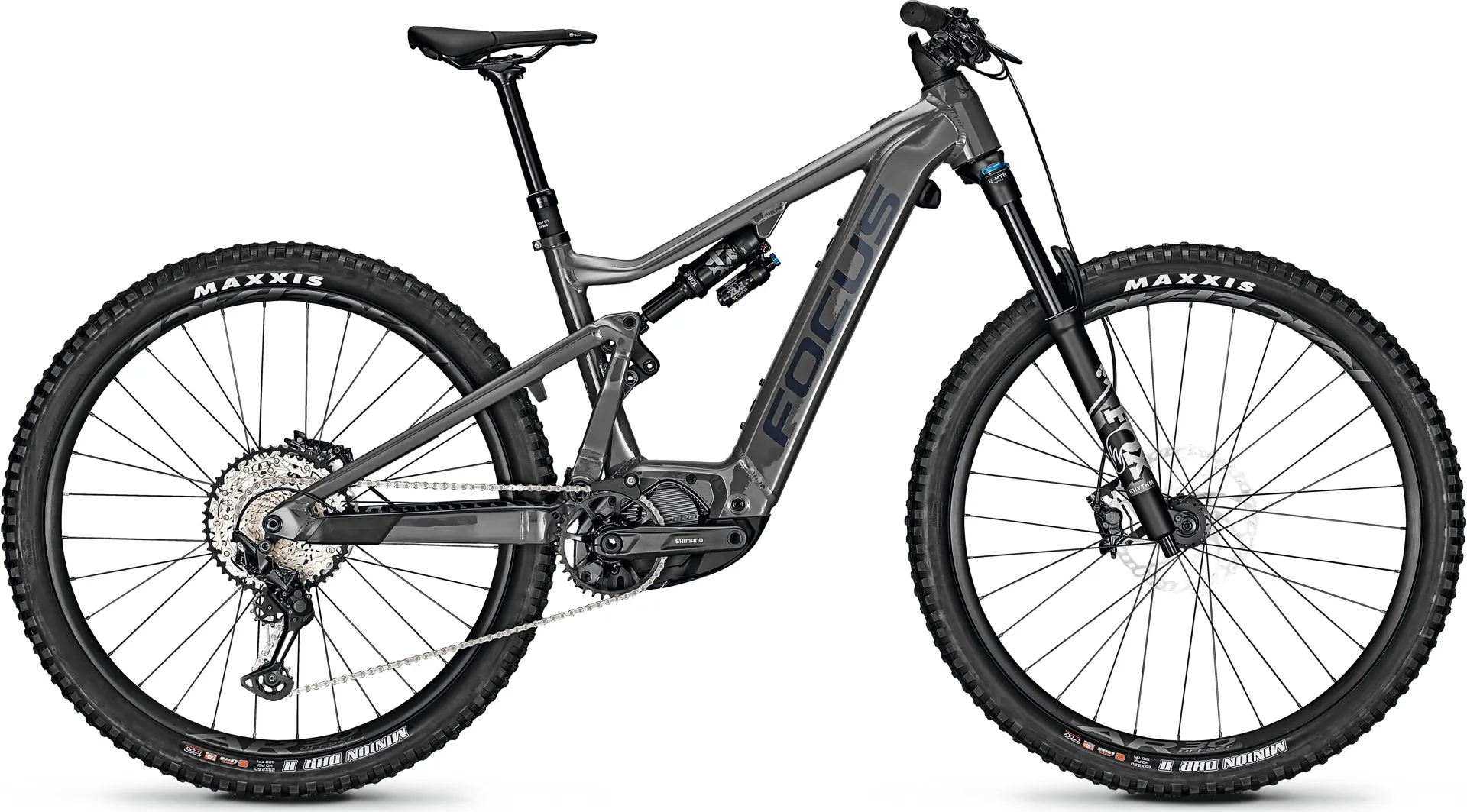

Focus Jam2 7.9 Large Grey

JAM² 7.9 FEATURES

SHIMANO EP8 E-DRIVE & 720 WH BATTERY

150 MM FOX 36 FORK & FLOAT X SHOCK

SHIMANO XT 1X12 COMPONENTS

• MORE DYNAMIC AND RANGE, BUT LESS WEIGHT

  Shimano's EP8 e-drive offers dynamic power and a lightweight system that supports the JAM² 7.9's agile geometry. You have two motor support profiles that you can customise to your needs. Thus, you can easily switch via the display between a smooth and continues profile for your ride to the trails and a very dynamic, progressive profile for your actual trail ride. It's all up to your preferences. Furthermore, our specially developed, integrated, yet removable battery supports your super long rides with 720 Wh. Additionally, a USB C port on the top tube gives you the opportunity to charge your devices.

• OPTIMIZED KINEMATICS FOR STRONG PROGRESSION

  With the upgrade of our well-known F.O.L.D. kinematics, your JAM² 7.9 is ready to shred even more. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in rough terrain. Especially e-mountain bikes with their additional weight of motor and battery benefit from more progression. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the JAM² 7.9 gives you more space to play on the trail.

• MORE FUN ON THE TRAILS

  Riding performance first. The JAM² 7.9 will make your ride better – every time. An agile, nimble geometry in a slim, compact design will push you over all kind of trails whether technical or flow. The FLIP CHIP at your JAM² 7.9's linkage can be used to adjust your geometry to an even more aggressive riding style. The small adjustment of the head angle from 65,5° to 65° changes your whole set-up goal making it even more downhill-oriented. Additionally, the specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. On top, all your essentials fit in the tool bag between top and down tube.



  SPECIFICATION

  FRAME MATERIAL

  Aluminium

  FRAME

  7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm

  FORK

  FOX 36 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake

  TRAVEL OF SUSPENSION FORK

  150 mm

  SHOCK

  FOX Float X Performance, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing

  MOTOR

  Shimano Steps EP8, 36V / 250 W / 85 Nm

  BATTERY WATT-HOURS

  720 Wh

  BATTERY AMPERE HOURS

  20,8 Ah

  DISPLAY

  Shimano Steps EM800

  SHIFTER

  Shimano Deore XT M8100, 12-speed

  REAR DERAILLEUR

  Shimano Deore XT M8100, 12-speed

  SPROCKET

  Shimano SLX M7100, 12-speed

  CHAIN

  Shimano SLX CN-M7100, 12-speed

  CRANKSET

  Shimano FC-EM600, 12-speed

  TRANSMISSION OF DRIVE

  front: 36, rear: 10-51

  BOTTOM BRACKET

  Integrated in Drive Unit

  HANDLEBAR

  Aluminium, 800 mm, rise: 30 mm, backsweep: 9°

  STEM

  FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium

  HEADSET

  ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset

  SADDLE

  Proxim W400

  SEATPOST

  Post Moderne dropper post PM-214, 34.9 mm

  BRAKE CALIPER

  Shimano XT M8120, 4 piston

  BRAKE LEVER

  Shimano XT M8120, 4 piston

  BRAKE

  Disc

  RIMS

  RaceFace AR30 Offset

  REAR HUB

  Novatec D462, 12x148 mm

  FRONT HUB

  Novatec D041, 15x110 mm

  TIRES

  Maxxis Minion DHF II, 2.6, 66-622

  GEARS

  12

  BIKE WEIGHT INCL. BATTERY IN KG.

  24,8

  SIZE

  39,45,42,47
