Enjoy easy riding and traffic-free commuting on the Sub Sport 30 urban E-Bike. With its strong and versatile Bosch motor and intuitive handling, it’s a convenient and confident way to leave the cars behind and embrace life on two wheels.
Enjoy easy riding and traffic-free commuting on the Sub Sport 30 urban E-Bike. With its strong and versatile Bosch motor and intuitive handling, it’s a convenient and confident way to leave the cars behind and embrace life on two wheels.
Scott

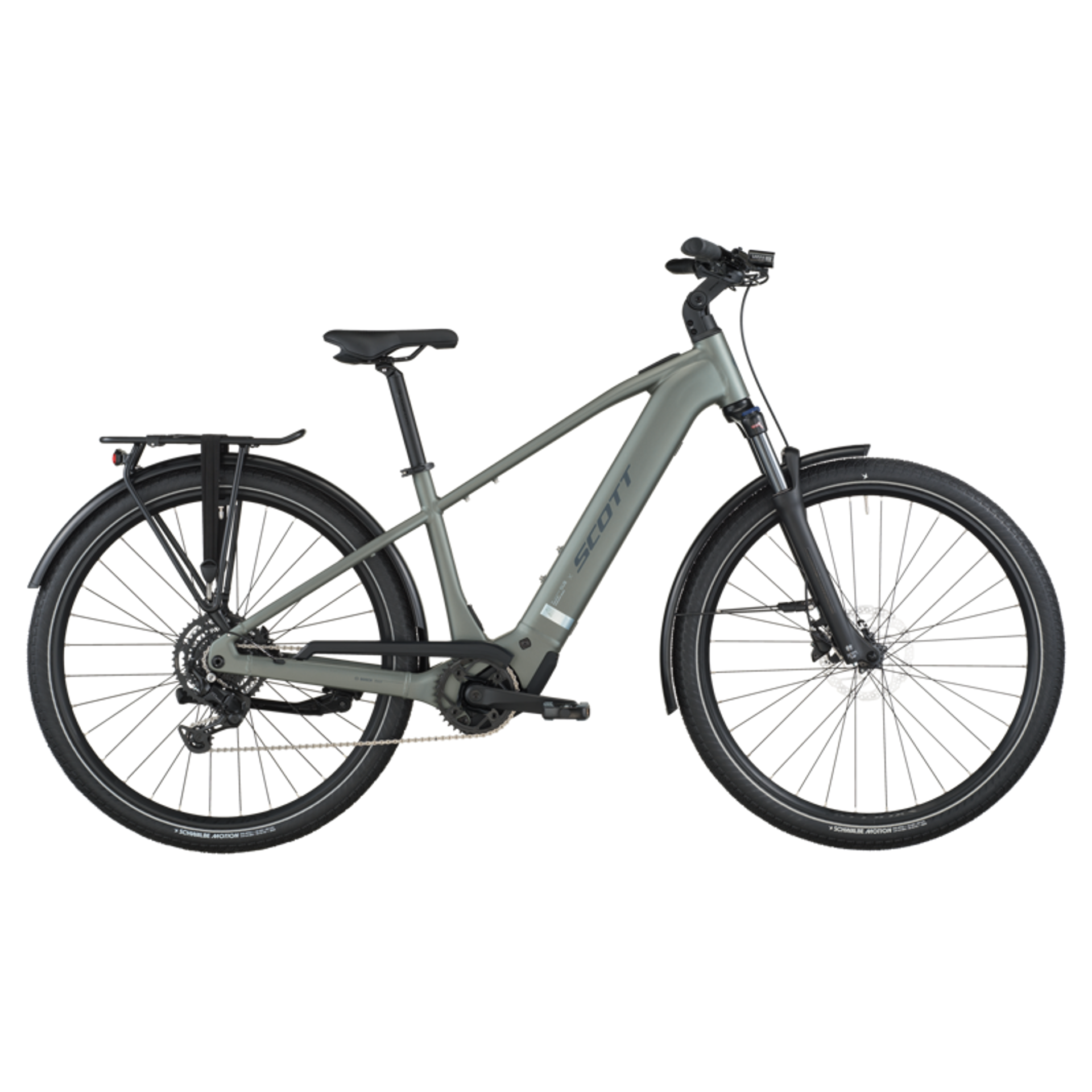

Scott Sub Sport 30 eHybrid Bike in Highland Green

£2,899.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Scott Sub Sport 30 eHybrid Bike in Highland Green

Season:2026

Brand:Scott

Code:425707highlandGRN

Enjoy easy riding and traffic-free commuting on the Sub Sport 30 urban E-Bike. With its strong and versatile Bosch motor and intuitive handling, it’s a convenient and confident way to leave the cars behind and embrace life on two wheels.

Scott designed Sub Sport 30 for balanced riding characteristics that make it feel natural to pedal and easy to navigate on any route through the city. Combined with Bosch’s Performance motor unit and range from the 540Wh it powers around town with ultra-quiet operation and delivers enough juice to get in bigger commutes or multi-stop runs on your errands.

Power comes on smoothly with natural-feeling accelerations. And multiple modes let you dial in precisely the support you’ll need in any situation or manage battery life between charges.

Sub Sport can carry up to 25kg on its rear rack (including an optional kids’ seat). It’s equipped with a front suspension fork to calm rougher sections on the route, and Shimano’s 9-speed drivetrain to easily manage any terrain on your map.

Features:

  • SUB eRIDE Alloy Frame
  • Bosch Performance, PT540 SmartSystem Engine System
  • SR Suntour 100m Fork
  • Shimano CUES 9 Speed Drivetrain
  • Shimano Disc Brakes
  • Schwalbe Big Apple Tires
  • Lezyne front light / Syncros integrated rear lights, Curana alloy fenders
  • Racktime carrier, Snap It 2.0 compatible, 25KG
Technical Information
  • Frame
    Alloy S-XL=29", 6061 Alloy custom butted tubing Side extraction battery UDH Interface, 12x148mm with 52mm Chainline
  • Travel
    100mm
  • Fork
    SR Suntour NVX 32 5TA NLO Coil, Tapered, 5x100 TA, Lock Out, 100mm Travel
  • Drive Unit
    Bosch Performance Line (BDU346Y) EU: 25kmh
  • Battery
    PowerTube 540Wh
  • Display
    Bosch Purion 200
  • Charger
    2A Charger
  • Shifters
    Shimano CUES RD-U4000GS 9 Speed
  • Crankset
    FSA CK-220 170mm
  • Chainguide
    Syncros
  • Chainring
    FSA 38T
  • Chain
    Shimano LG500
  • Cassette
    Shimano CS-LG3009 11-46 T
  • Brakes
    Shimano BR-MT200 Disc
  • Rotor
    Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
  • Handlebar
    Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
  • H'stem
    Syncros UC 3.0 adjustable with front Light mount
  • Seatpost
    Syncros 3.0, 31.6mm, 350mm
  • Seat
    Syncros Capilano
  • Headset
    Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm
  • Hub (Front)
    Shimano HBQC400B58LL, 5x100mm
  • Hub (Rear)
    Shimano FHTC500HMBB, 148x12mm
  • Spokes
    Black Spokes
  • Rims
    Syncros X18 Disc
  • Front Tire
    Schwalbe Big Apple Performance, 55-622
  • Rear Tire
    Schwalbe Big Apple Performance, 55-622
  • Lights
    Front Lezyne Hecto E65 Rear Super Bright Lezyne Light
  • Rack
    Racktime carrier SnapIt 2.0 25KG
  • Pedals
    Marwi SP-828
  • Approx weight in KG
    27.6
  • Approx weight in LBS
    60.85
  • Max. System Weight
    160kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
